STINGRAY Complete & Board

Ten years have passed since the first Flying Fish appeared, and a New legend begins!

The day の生みの親でもあるシェイパー TaQ INOUE 氏により企画監修されたデザインをモディファイしていよいよ登場 ! シリーズの中でもっとも長く幅の広いこのボードは、パウダーを快適に滑るための高い浮力と操作性 ( ボード形状・ノーズの上がり具合・ボードバランス ) 全てを兼ね備えたフルロッカーモデルで、食い荒らされたパウダーコンディションでもまるで浮いているようなストレスのない走破性能を発揮するでしょう!!
Introducing a modified version of the design planned and supervised by shaper Mr.TaQ INOUE, who is also the creator of The day! This board is the longest and widest in The day board series, and has high buoyancy for comfortable riding on powder.

販売価格 / Price

完成車 / Complete ¥242,000 (税込 / Tax included) BUY NOW
ボードセット / Board set ¥154,000 (税込 / Tax included) BUY NOW
フレームカラー
Frame color

69 / 230 マットロウ (Matt Raw)・マットブラック (Matt Black)・マットシャンパンゴールド (Matt Champagne Gold)
69 / 270 マットロウ (Matt Raw)

ボードカラー
Board color

ティント ミントグリーン (Tint Mint Green)

パーツ
Parts

アルミハンドルバー (Alloy bar)Φ31.8 / 9inch780mm・アルミステム (Alloy Stem) /35or50mm・FSA1-1/8 セミインテグレーテッドヘッドセット(Semi Integrated Headset・アンチシェービングワッシャー (Anti Shaving Washer) / 8・アンチスキッドピン (Anti Skid Pin) / 20・シングルオングリップ (Grip)・アルミスペーサー (Alloy Spacer) / 10mm X 2・5mm X 2・2mm X 1 ・ウレタンブッシュ&ボルトセット (Bush & Bolt Set) 8・リーシュコード (Leash)・ネオプレーン製トップチューブガード (Toptube Guard)・スノープロテクションパッド (Snow Protection Pad)・工具一式 (Tool)・取扱い説明書
※ シートブーム&パッド、ロックピン、バンピーストラップはオプションパーツになります。 (Seat boom & pad, lock pin, and bumpy strap are optional parts)

キット / kit Spec

フレーム
Frame

6061 T-6 Alloy

シート
Seat

6061 T-6 Alloy

フォーク
Fork

6061 T-6 Alloy

ハンドルバー & ステム
Handlebar & Stem

6061 T-6 Alloy

原産国
Country of origin

台湾 (Taiwan)

The "Deep Powder Board" was created for the finest powder runs !!

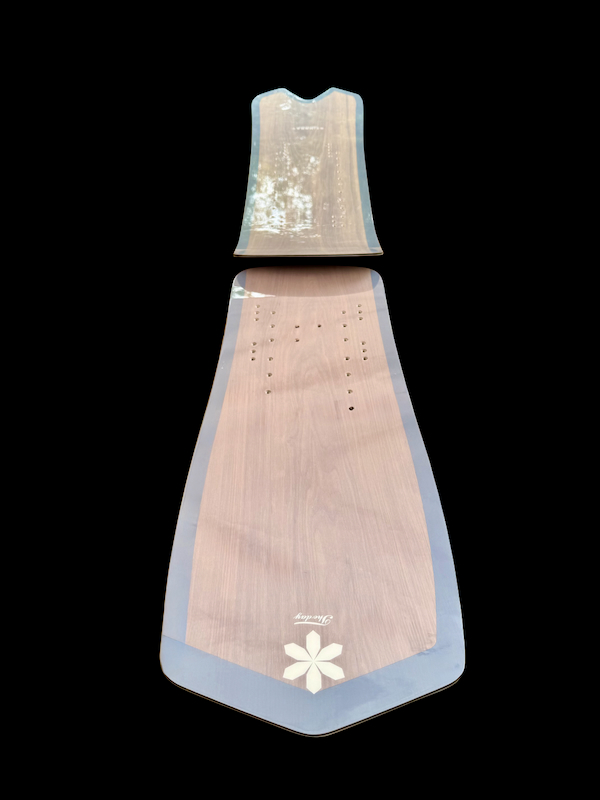

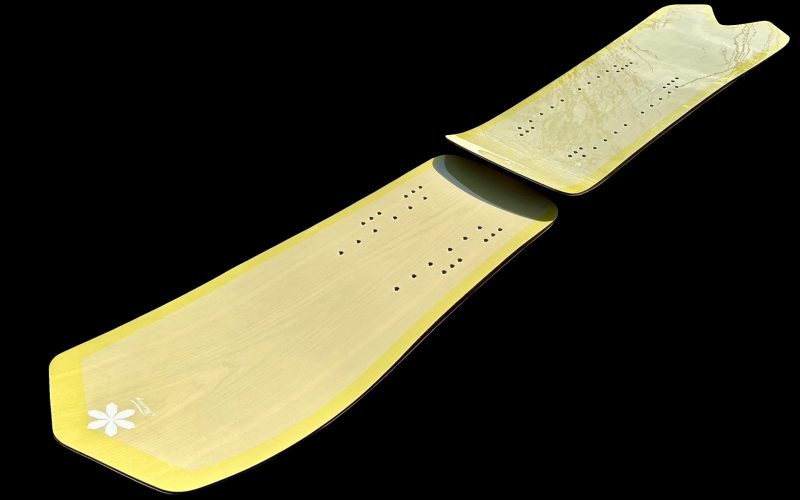

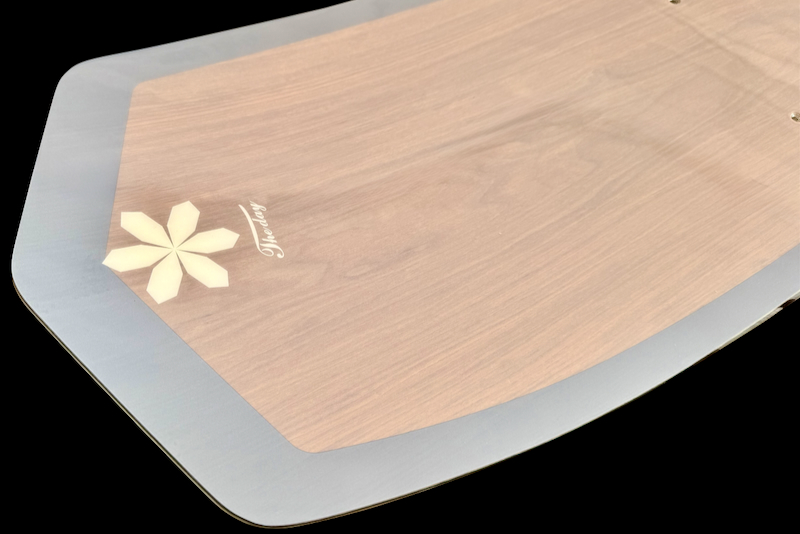

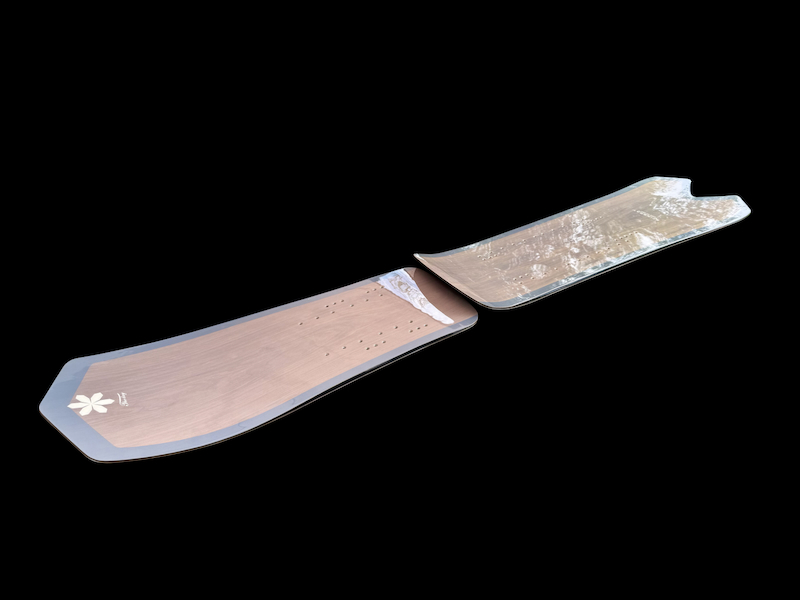

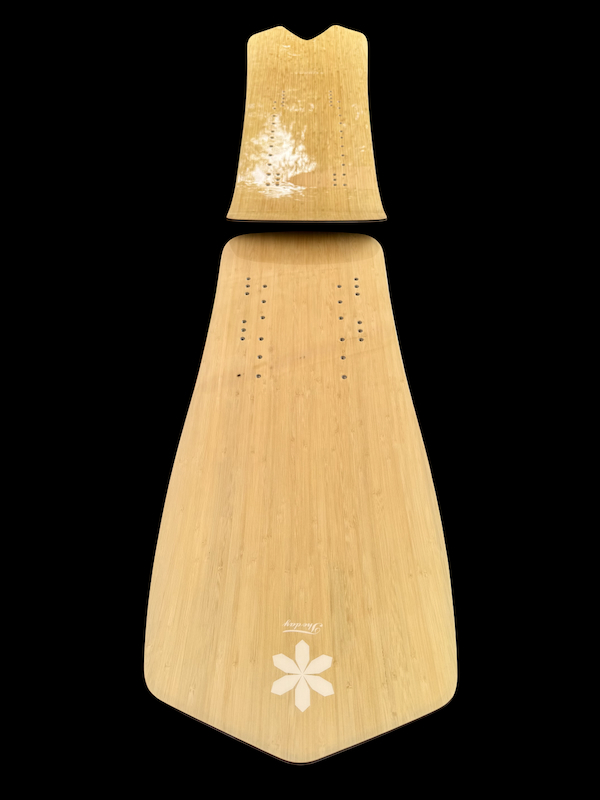

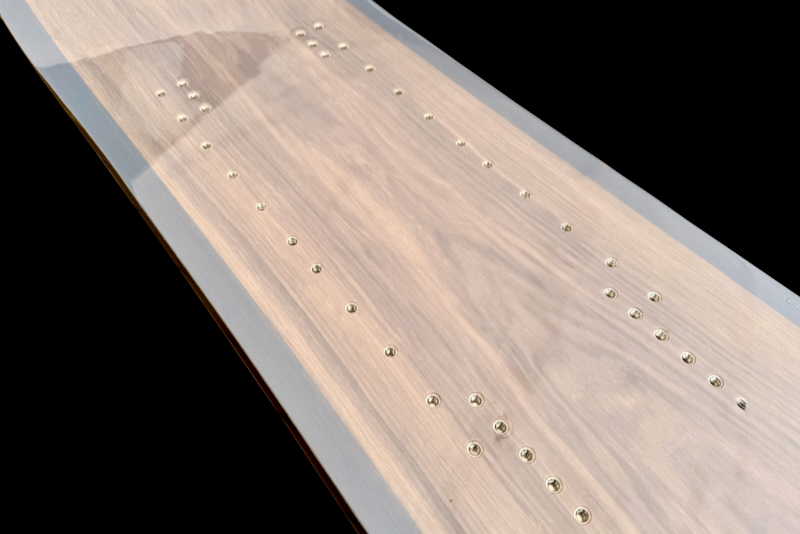

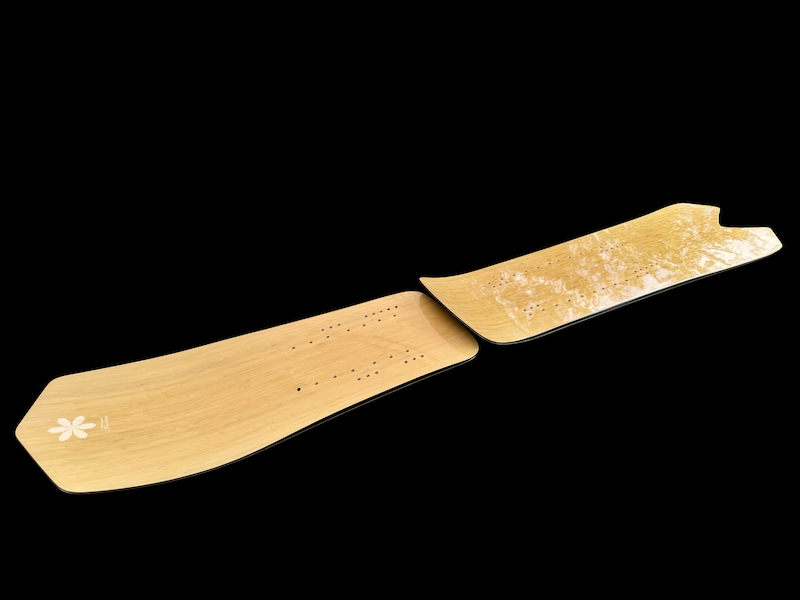

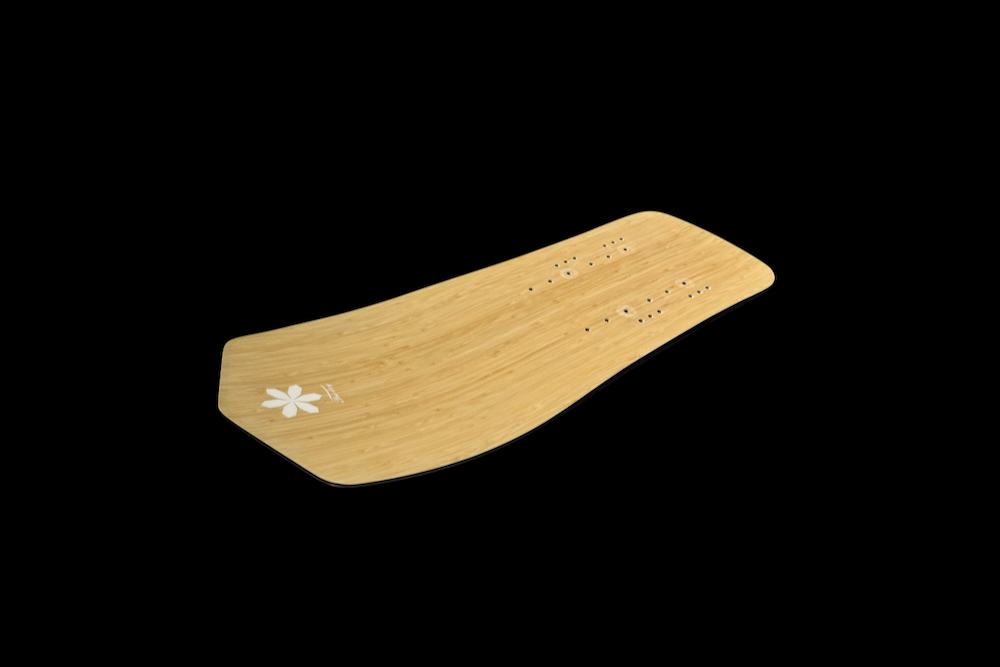

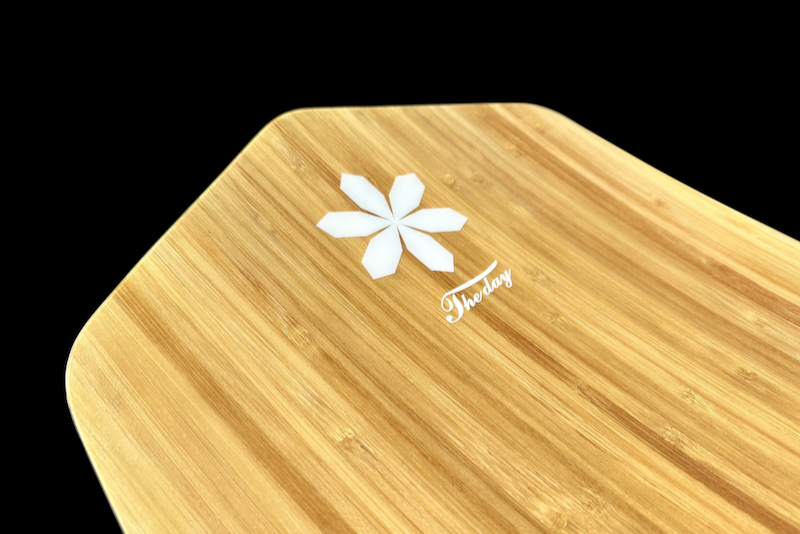

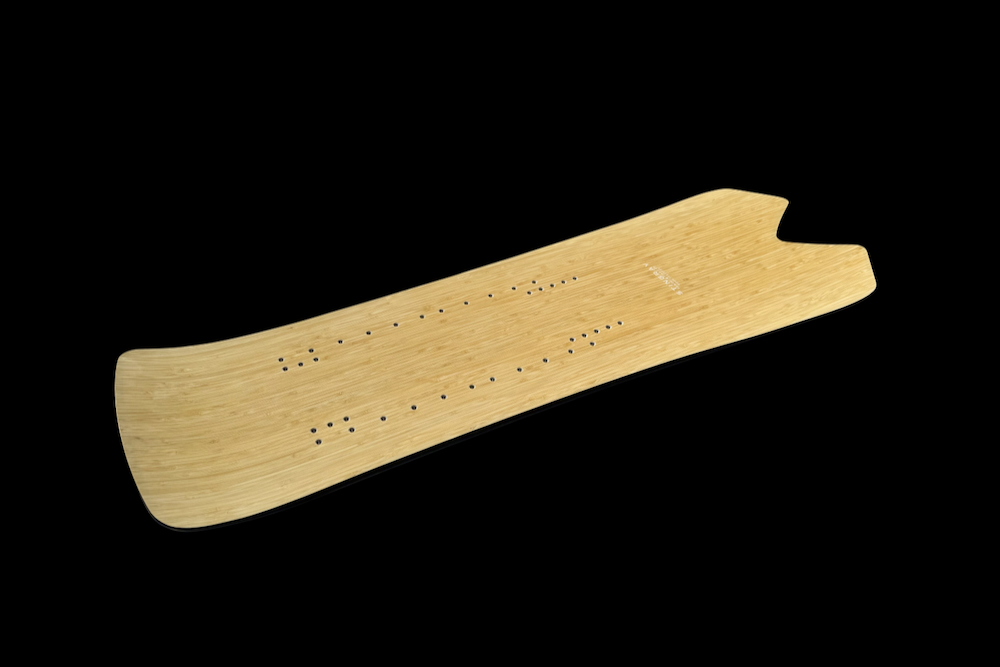

ボード / Board Spec

カラー
Color

ティント ミントグリーン (Tint Mint Green)

ベンド
Bend

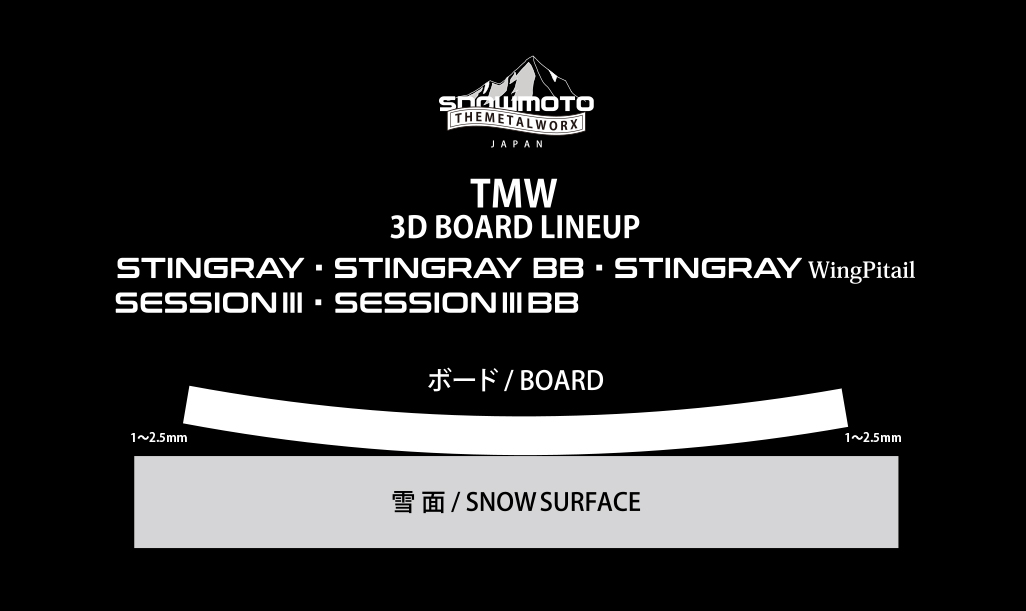

F:ロッカー (Rocker) R:ロッカー (Rocker)

フレックス
Flex

F:ミディアム (Medium) R:ミディアム (Medium)

コア材
Core

アスペン (Aspen)

サイドウォール
Sidewall

ABS

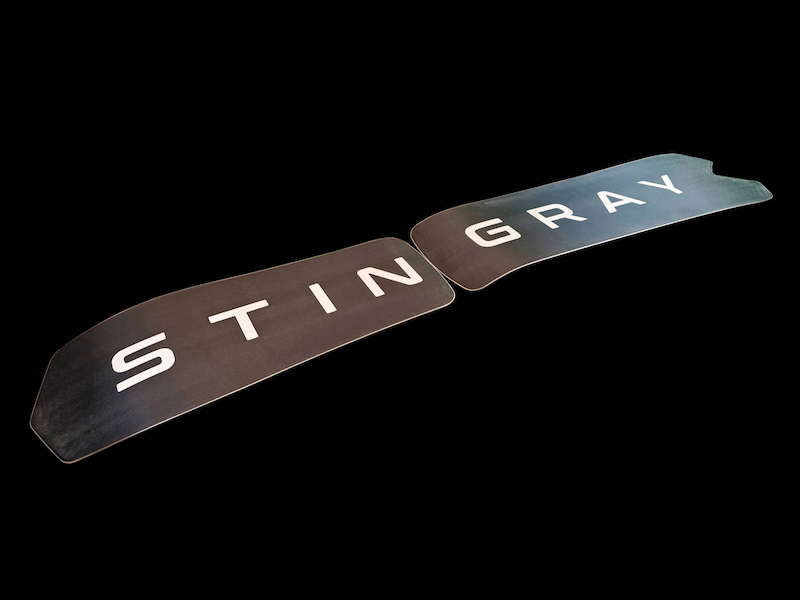

ソール
Sole

ISO7500  (Sintered)

トップシート
Top sheet

熱可塑性ポリウレタン (Thermoplastic Polyurethane)・UVコーティング (UV Coating)

サイズ / ウエイト
Size / Weight

全長 (Length) : 1,978mm・全幅 (Width) : N/345mm W/290 T/ 355

原産国
Country of origin

中国 (China)

推 奨
Recommend

ディープパウダー & フリーライド (Deep Powder & Freeride)

注意事項 / Notice

※ 本仕様は予告なく変更する場合があります。
※ These specifications are subject to change without notice.
※ フレーム及びボードカラーは実際と異なって見える場合があります。
※ The Frame and Board color may look different from the actual color.
※ フレーム及びボード重量につきましては、それぞれ個体差が生じます。
※ There will be individual differences in Frame and Board weight.
※ ボードは使用前に滑走に必要のない部分のエッジ(特にリアボードノーズ部分)をダリングして下さい。
※ Before using the Board, please dull the edges of the parts that are not necessary for gliding (Especially the rear board nose).
※ 滑走前にアルミ製ハンドルバーに亀裂がないか確認の上ご使用下さい。
※ Please check that there are no cracks in the Alloy handlebar before use.
※ スノーバイク特有のマニュアル(ウイリー)走行は、ボード破損に繋がる可能性があります。十分注意して下さい。
※ Manual (Wheelie) riding, which is unique to Snowbikes, may lead to board damage. Please be careful.
※ 非貫通ブッシュを使用した場合、フロントボード(リア)とリアボード(ノーズ)が干渉します。利用される場合は干渉することを承知の上ご使用下さい。
※ If a non-penetrating Bush is used, the Front board (Tail) and Rear board (Nose) will interfere. If you use it,
please be aware that it may cause interference.
※ 使用後のボードの亀裂や破損、ネジの締め過ぎによるソールの突起及びウレタン製品の劣化は「保証範囲外」となります。
※ Cracks or Damage to the board after use, protrusions on the sole due to over-tightening of screws, and deterioration of urethane products are not covered by the warranty.
